Top 5 Plugins of SketchUp for BIM Architects

If you use SketchUp regularly, you know the base tools only get you so far. The right plugins change how fast you work and what you can deliver.

Here's what actually makes a difference.

1/ The "Revit-inside-SketchUp" engine

PlusSpec

It turns SketchUp into a full Virtual Design and Construction (VDC) tool with parametric walls, roofs, and automated bills of materials.

Why it matters: SketchUp is often criticized for lacking "information." PlusSpec adds that layer. You aren't just drawing lines; you are placing specific wall types with real-world thickness, insulation values, and product codes.

Best for: Full-scale BIM projects where you need construction documentation and material takeoffs directly from the model.

Trimble Connect

A cloud-based collaboration platform that allows you to view, share, and access project information from anywhere.

Why it matters: BIM is about coordination. This tool lets you reference IFC models from structural engineers (using Revit or Tekla) directly inside your SketchUp environment without heavy file imports.

Best for: Coordinating complex projects with multidisciplinary teams.

2/ Parametric modeling and assemblies

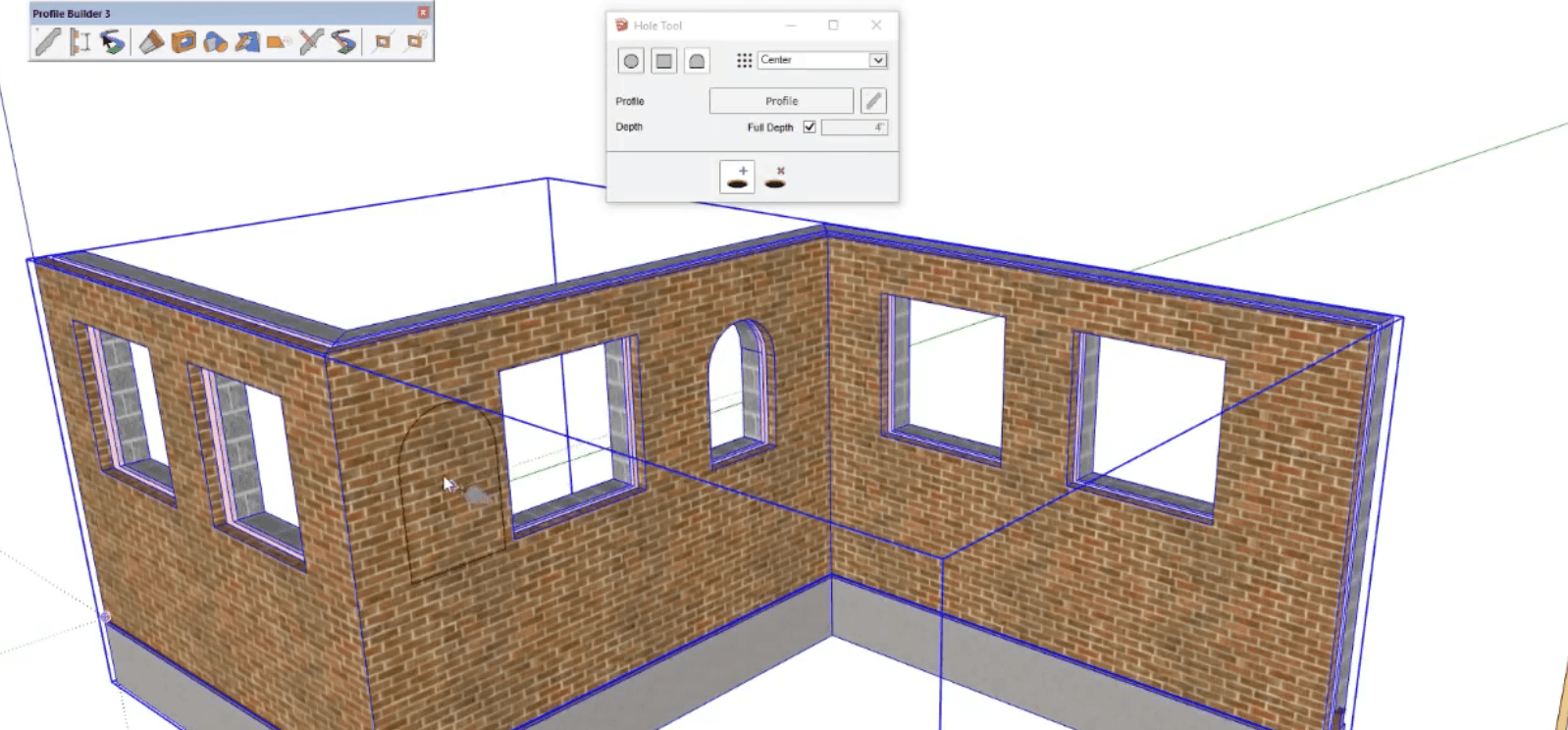

Profile Builder 3

It allows you to create smart, parametric assemblies—like railings, stairs, and framing—that follow paths and update automatically.

Why it matters: Native Follow Me tools are destructive; once you make a shape, it is static. Profile Builder keeps the geometry "live." If you change the path of a railing, the balusters and handrails adjust instantly.

Best for: Modeling repetitive architectural elements like fences, curtain walls, and structural steel.

FlexTools

A suite of responsive architectural components like doors and windows that cut their own openings.

Why it matters: Moving a window in raw SketchUp usually means healing the geometry manually. FlexTools components snap to wall thickness and update openings automatically when moved or resized.

Best for: Fast design iterations where window and door schedules are constantly changing.

3/ Documentation and "Live" Sections

Skalp

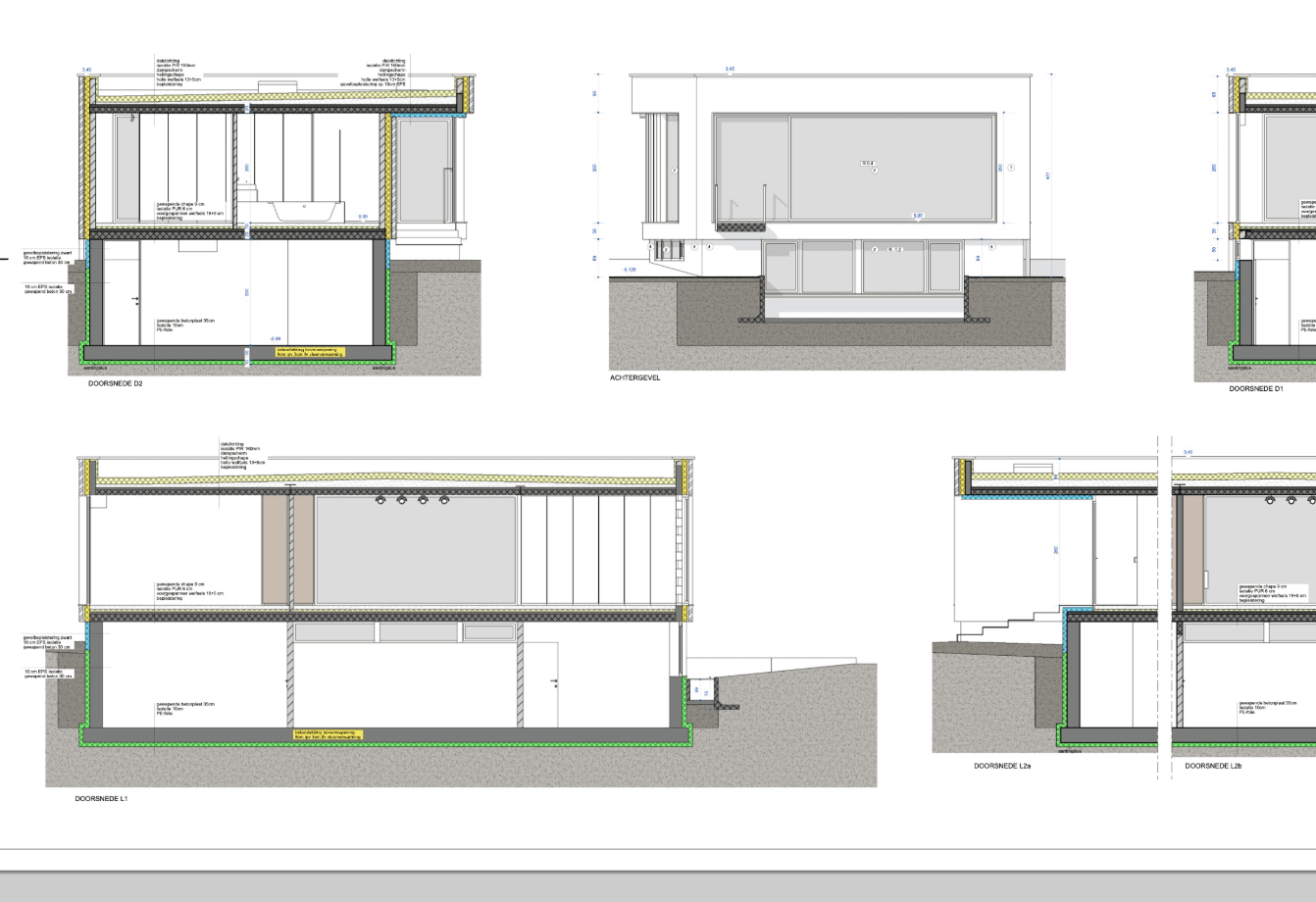

It creates live, hatched section cuts that update automatically as you modify the model.

Why it matters: The biggest bottleneck in SketchUp is often moving from 3D to 2D. Skalp handles the hatching standards (ANSI, ISO) and exports clean DXF files, making your sections look like professional CAD drawings instantly.

Best for: Construction documents and detailed section drawings.

Layout (with Curic plugins)

While Layout is native, plugins like Curic Section boost its capability to handle complex vector viewports.

Why it matters: It bridges the gap between a conceptual model and a permit set. It reduces the friction of updating viewports when the 3D model changes.

Best for: Assembling final presentation boards and construction sets.

4/ The "I" in BIM (Information & Data)

Quantifier Pro

It calculates area, volume, length, weight, and costs instantly from your model geometry.

Why it matters: BIM is useless without data. This plugin lets you assign cost data to layers or materials. You can generate a cost estimate for a client in seconds based on the actual geometry in your viewport.

Best for: Feasibility studies, budget estimation, and contractor takeoffs.

Undet

It brings massive point cloud data (from laser scans) into SketchUp without crashing the system.

Why it matters: For renovation projects, working from a scan is the new standard. Undet lets you model directly over the point cloud to create accurate as-built BIM models.

Best for: Renovation, retrofit, and heritage preservation projects.

5/ Performance and Analysis

Sefaira

It provides real-time energy and daylight analysis directly within the SketchUp viewport.

Why it matters: Decisions made in the first 20% of design determine 80% of a building's performance. Sefaira lets you see the energy impact of massing and glazing choices before you commit to them.

Best for: Early-stage sustainability analysis and meeting energy code requirements.

Solar North

A simple utility to set and display the precise solar north angle for your project location.

Why it matters: Accurate shadow studies are a legal requirement for many planning applications. This ensures your shadow analysis is factually correct, not just visually pleasing.

Best for: Site analysis and planning permit submissions.

Choosing what fits your work

Not every plugin makes sense for every project. Match tools to your actual bottlenecks, not feature lists.

Start with one or two that address your most frequent friction points. Add more as workflows evolve.

> “We don't need more features. We need to get the drawings out the door before Friday.”

Bonus: Speed up rendering without leaving your workflow

If rendering is your bottleneck, Rendair handles visualization faster than most plugins can process.

Upload your SketchUp exports, get presentation-ready renders in minutes. No new software to learn, no render farm setup.

Start creating – try it free
