Top Plugins and Extensions for Navisworks

If you use Navisworks regularly, you know the base tools only get you so far. While it is the industry standard for coordination, it can be incredibly "click-heavy." The right plugins change how fast you work and what you can deliver.

Here's what actually makes a difference.

1/ Clash Automation and Management

iConstruct

A comprehensive suite for model conditioning and clash management.

Why it matters: It turns Navisworks into a data management powerhouse. Its "Clash Manager" allows you to group thousands of clashes by level, zone, or system in seconds, and "ReConstruct" lets you export clean, cropped sections of the model for other teams.

Best for: Enterprise-level BIM coordination and "Advanced Work Packaging."

Sherlock (by Flypaper)

A set of tools specifically designed to speed up the coordination process.

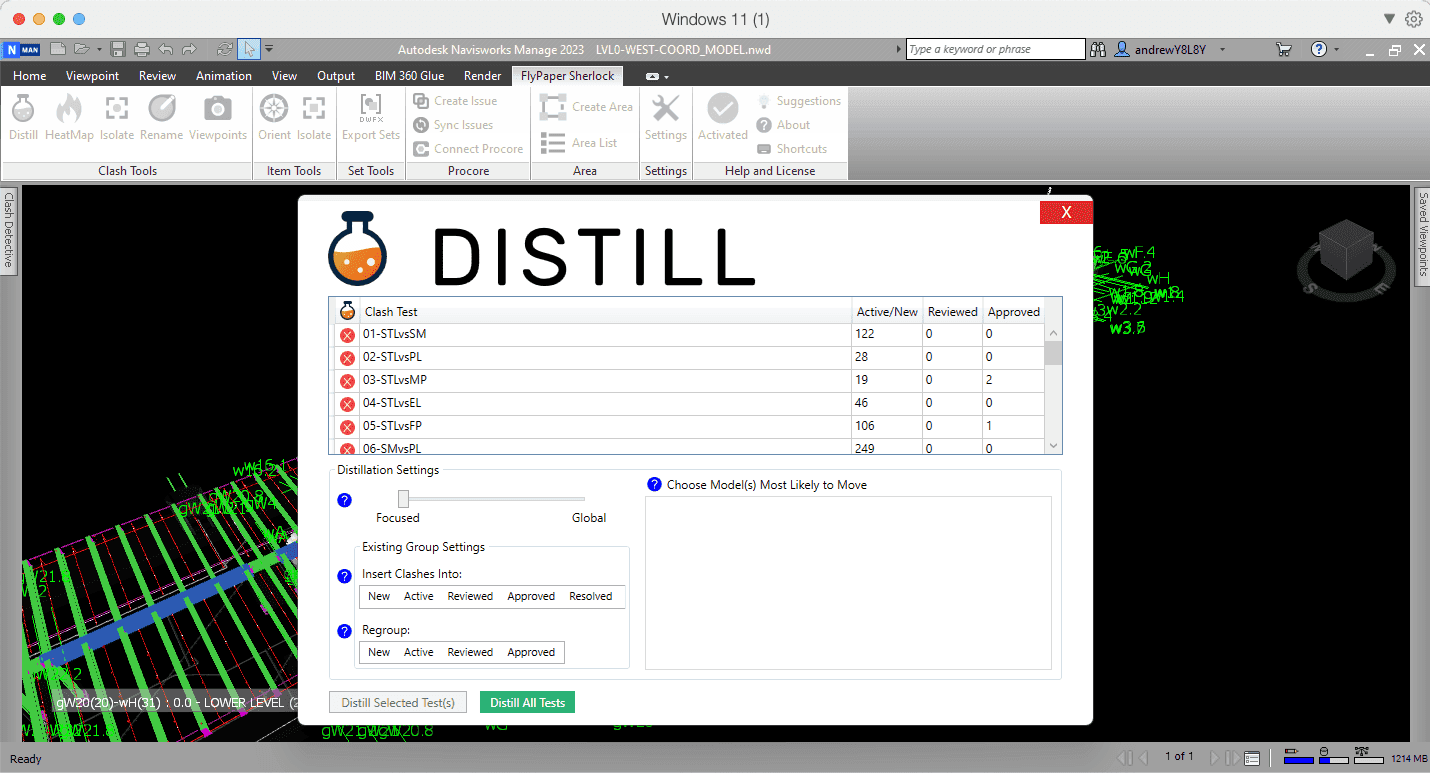

Why it matters: It focuses on speed. The "Distill" feature groups clashes automatically based on your model hierarchy, and "Heatmap" visualizes clash density so you know exactly where to focus your attention first.

Best for: Coordinators who need to identify and assign issues rapidly.

Group Clashes (BIM 42)

A focused, lightweight plugin dedicated to sorting clash results.

Why it matters: It solves the specific pain point of having 5,000 clashes that are actually just one pipe hitting a floor. It groups them by grid intersection or level without the complexity of a full suite like iConstruct.

Best for: Quick, effective clash grouping on a budget.

2/ Issue Tracking and Collaboration (BCF)

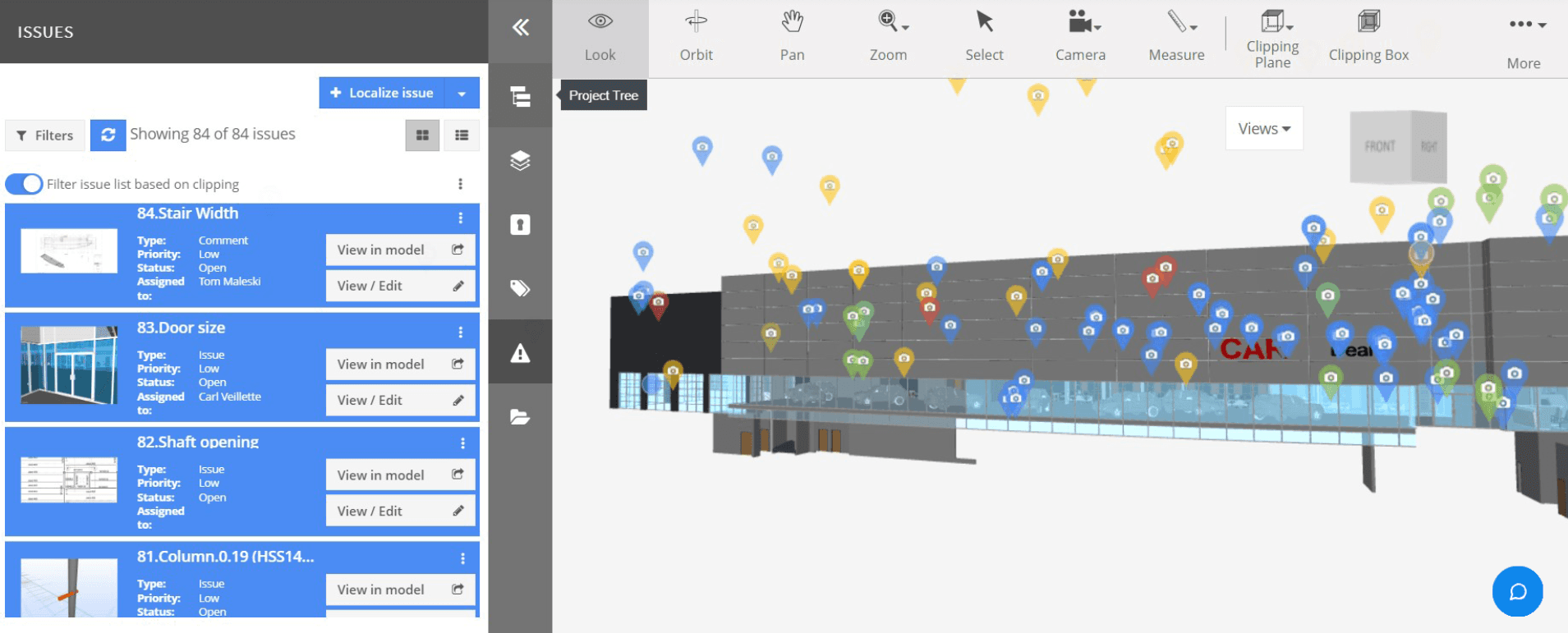

Newforma Konekt (formerly BIM Track)

A cloud-based platform that connects Navisworks issues directly to authoring tools like Revit.

Why it matters: It eliminates the need for sending static reports. You mark a clash in Navisworks, and it appears as a task in the architect’s Revit model. The "Localize" feature helps users find the exact camera angle of the issue instantly.

Best for: Large, multi-disciplinary teams requiring real-time issue resolution.

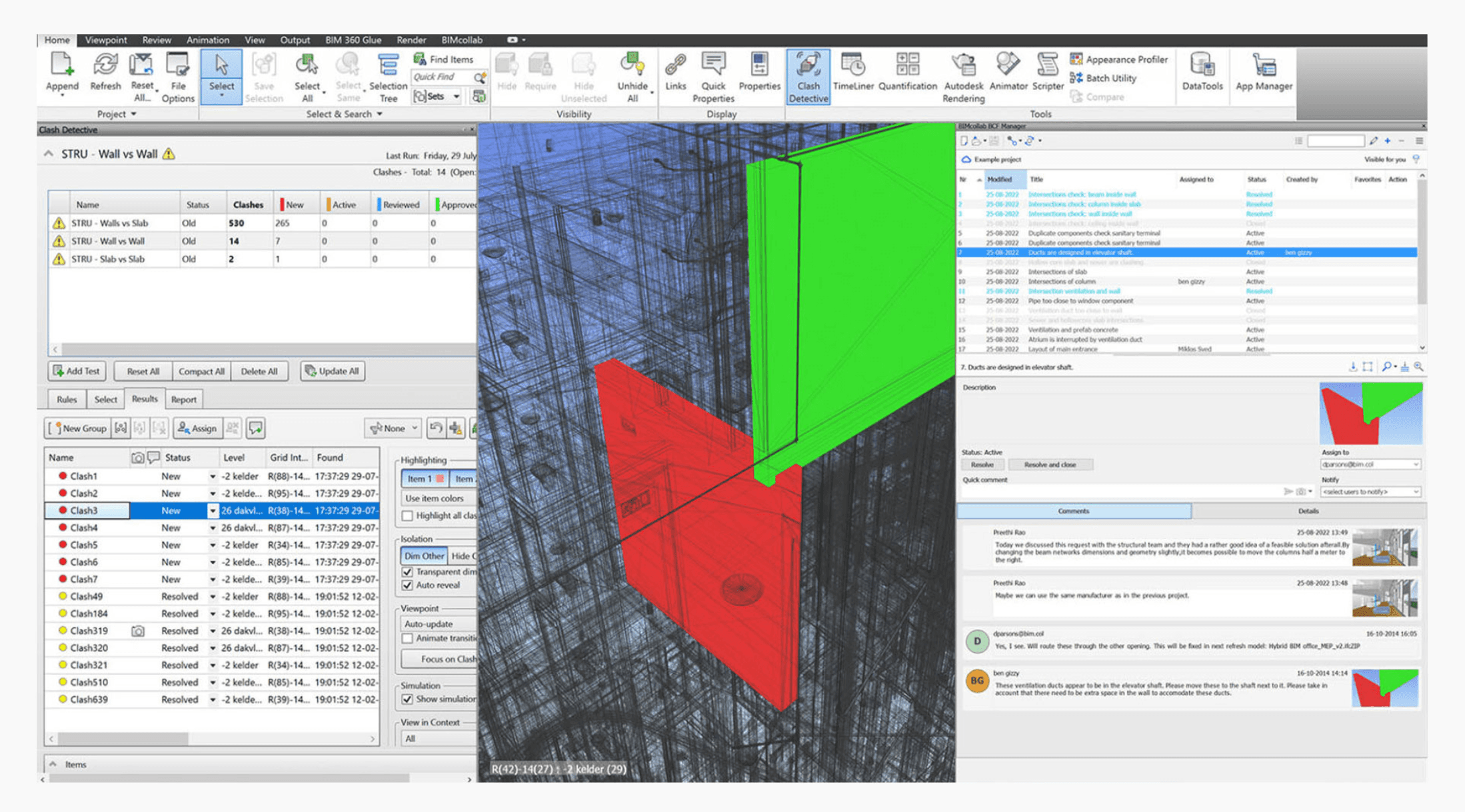

BIMcollab BCF Manager

The industry standard for OpenBIM issue management.

Why it matters: It allows you to create, edit, and filter issues directly within Navisworks using the BCF (BIM Collaboration Format) standard. It ensures that no matter what software the other consultants use, the issue data remains consistent.

Best for: Projects committed to OpenBIM workflows.

3/ Data and Property Management

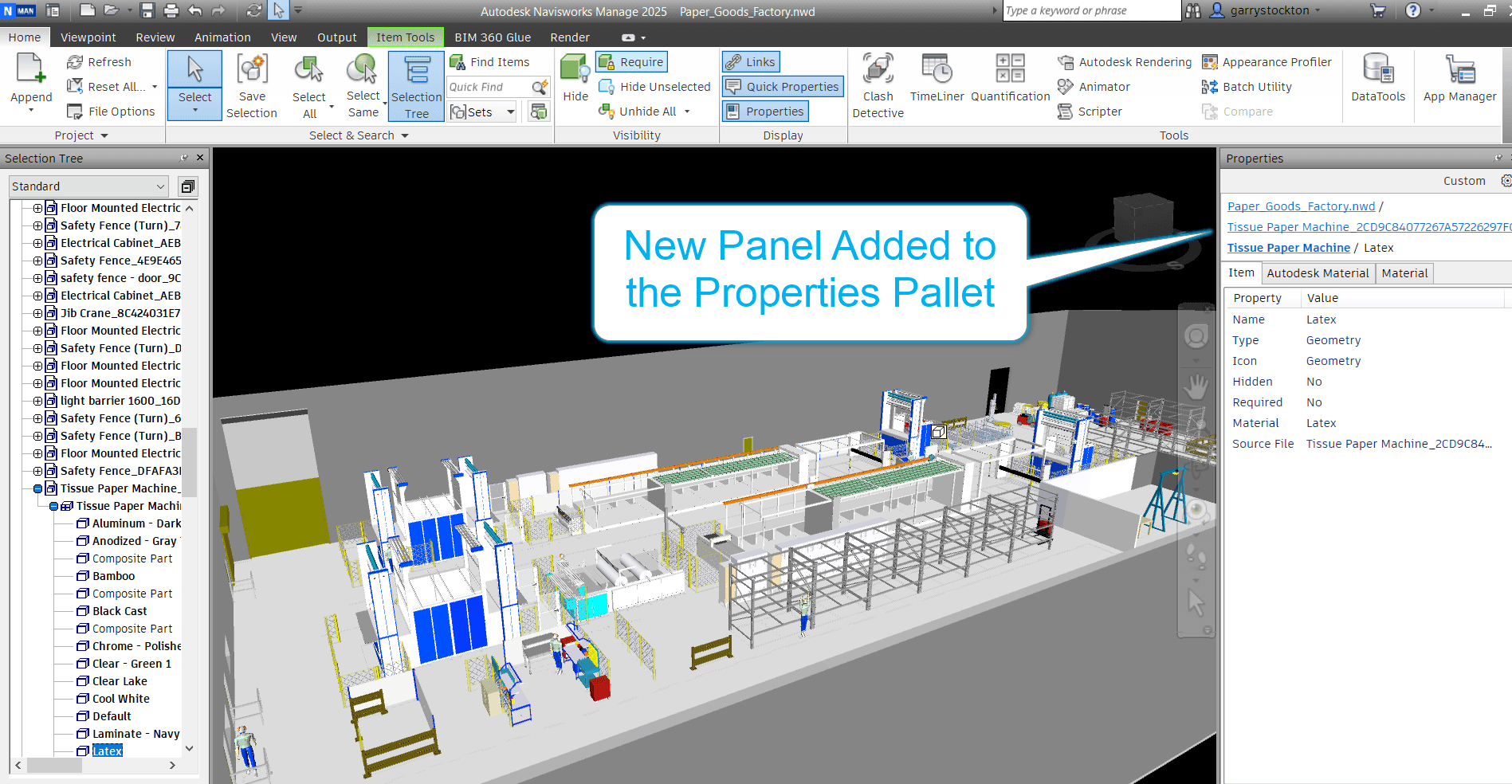

Properties Panel Enhanced

The modern replacement for the classic "Properties+" plugin (Autodesk).

Why it matters: The native properties window in Navisworks is cluttered and difficult to read. This plugin lets you customize exactly which data fields you see, stack categories, and favorite the properties you check most often.

Best for: Every user. This should probably be installed by default.

Navistools

A tool for linking external databases to your 3D model.

Why it matters: It allows you to inject data from Excel or SQL databases into the Navisworks model without touching the original design files. It also includes a "Status" feature to color-code elements based on construction progress.

Best for: Facility management handover and construction status tracking.

4/ File Management and Export

CodeBook

A specialized tool for managing room data and equipment requirements.

Why it matters: It verifies that the equipment in the model matches the medical or technical requirements database. It is essential for complex facilities where room data sheets must match the geometry perfectly.

Best for: Healthcare, laboratory, and complex facility projects.

IFC Extension (Navistools)

An enhanced importer/exporter for IFC files.

Why it matters: Native IFC handling in Navisworks can sometimes drop data or mess up hierarchy. This extension provides better control over how IFC properties are read and reported, ensuring data integrity during open exchanges.

Best for: Projects relying heavily on IFC exchanges.

5/ Productivity and Utility

Selection Sets (Various / Native Scripting)

While native, using plugins like Holixa or Selection Set Manager automates the creation of search sets.

Why it matters: Manually creating search sets for "All Walls Level 1" is tedious. Automation tools generate these sets based on properties instantly, ensuring your clash tests are always running on the correct geometry.

Best for: Setting up new project files quickly.

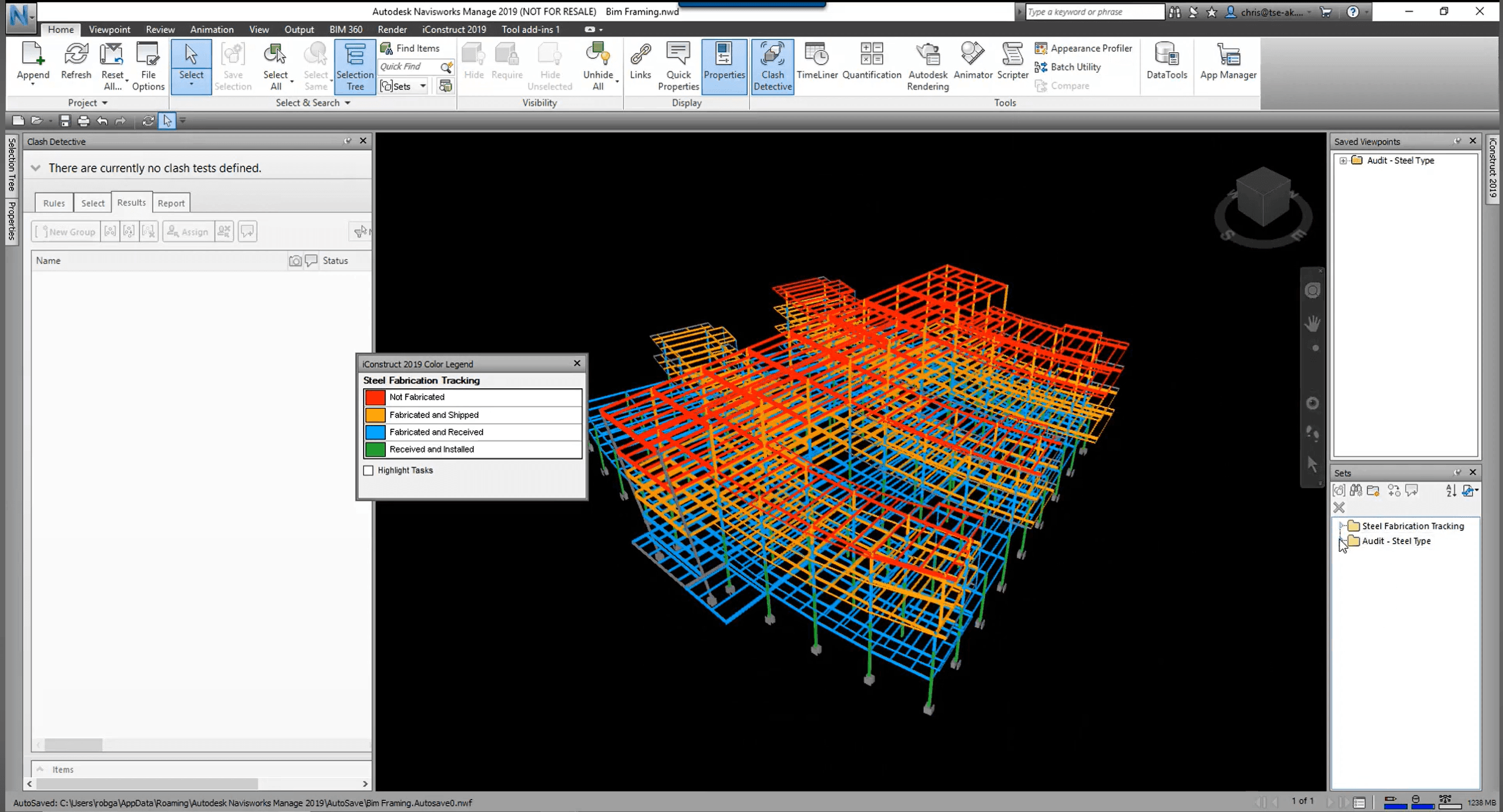

Colorizer (Iconic BIM / iConstruct)

Tools that automate the "Appearance Profiler."

Why it matters: Visual clarity is safety. These tools let you apply standardized color schemes (e.g., Supply Air = Blue, Return Air = Magenta) across different model updates automatically, so you don't have to re-apply colors manually every week.

Best for: Preparing models for coordination meetings.

Choosing what fits your work

Not every plugin makes sense for every project. Match tools to your actual bottlenecks, not feature lists.

• If you are drowning in clashes: Start with Sherlock or BIM 42.

• If communication is the issue: Get Newforma Konekt or BIMcollab.

• If data is messy: Use Properties Panel Enhanced.

Start with one that addresses your most frequent friction point.
