Top Plugins and Node Packs for Substance 3D Designer

If you use Substance 3D Designer regularly, you know the vanilla node library is extensive but not exhaustive. The "base" experience often requires you to build complex graphs for simple operations, like placing a pattern or fixing a tiling seam, that should just be a single click.

Unlike other 3D software with centralized "App Stores," the best extensions for Designer are scattered across ArtStation, Gumroad, and GitHub in the form of Custom Node Packs (.sbsar) and Python scripts.

Here are the tools that experienced material artists actually use to reduce graph complexity and speed up iteration.

1/ Pattern and Shape Generation

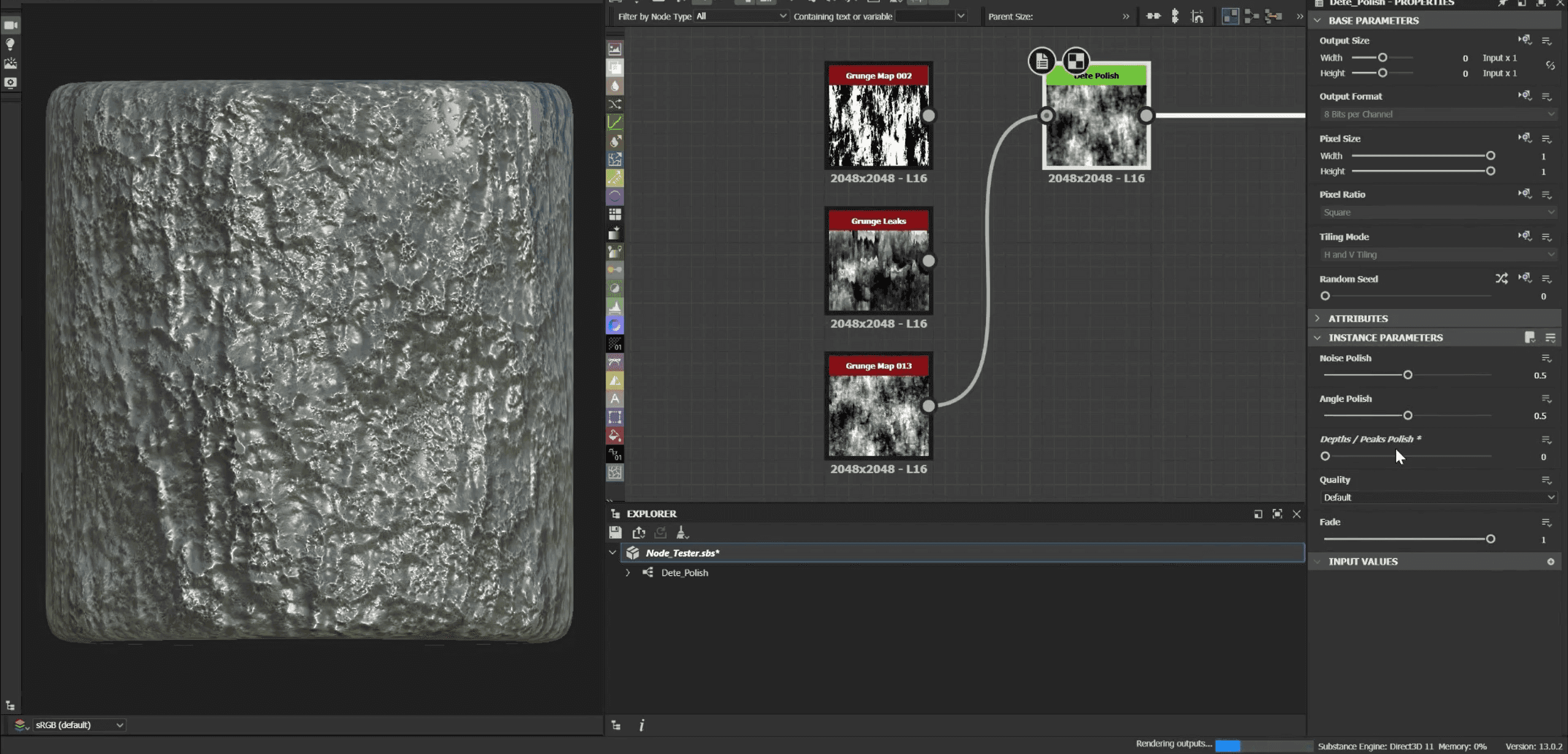

Dete Node Pack (Daniel Thiger)

A collection of advanced utility nodes created by one of the industry's most respected material artists.

Why it matters: Designer’s native pattern generation can be rigid. Thiger’s tools, particularly the Pattern Placer and Duplicator, allow you to scatter and manipulate shapes with a level of control that usually requires complex function graphs. It bridges the gap between rigid procedural logic and organic placement.

Best for: Creating organic surfaces, complex architectural ornaments, and breaking up repetition in floor tiles.

Curve Drawing System (Igor Elovikov / Native)

Note: While Adobe recently added native curve nodes, legacy packs by artists like Igor Elovikov set the standard.

Allows you to draw shapes directly in the 2D view using Bezier curves, rather than combining basic shapes mathematically.

Why it matters: It removes the abstraction barrier. Instead of trying to "math" a shape into existence using SDF (Signed Distance Field) nodes, you simply draw the profile you need.

Best for: Creating specific molding profiles, cable routing, or custom decals.

2/ Workflow "Fixers" and Utilities

STW Utility Node Pack

A set of practical "fixer" nodes including Make It Tile Patch and Vector Transform.

Why it matters: The native "Make It Tile" node often blurs details or creates visible ghosting. The STW version uses a patch-based approach that preserves texture fidelity while eliminating seams. It turns a destructive photo-scanning workflow into a seamless procedural one.

Best for: Processing scanned materials (photogrammetry) and fixing non-tiling grunge maps.

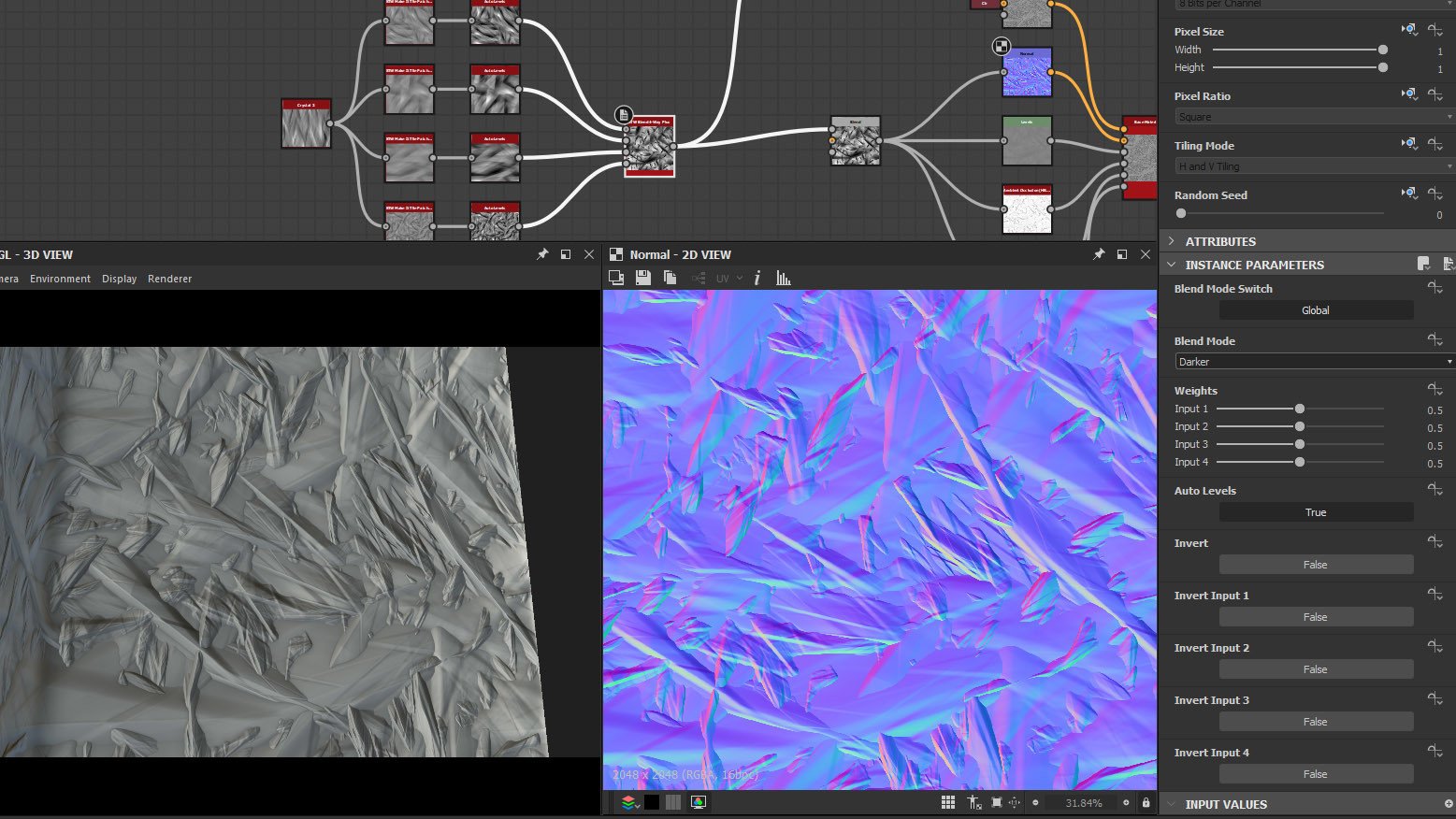

Frugbug’s SD Nodes

A GitHub repository of open-source helper nodes like Centered Auto Levels and Soft Warp.

Why it matters: The native "Auto Levels" node can be aggressive, often clipping data you wanted to keep. "Centered Auto Levels" preserves your mid-gray values (0.5), ensuring that your height maps don't suddenly jump in elevation when you just wanted to normalize contrast.

Best for: Height map calibration and subtle surface warping without pixelation.

3/ Automation and Pipeline

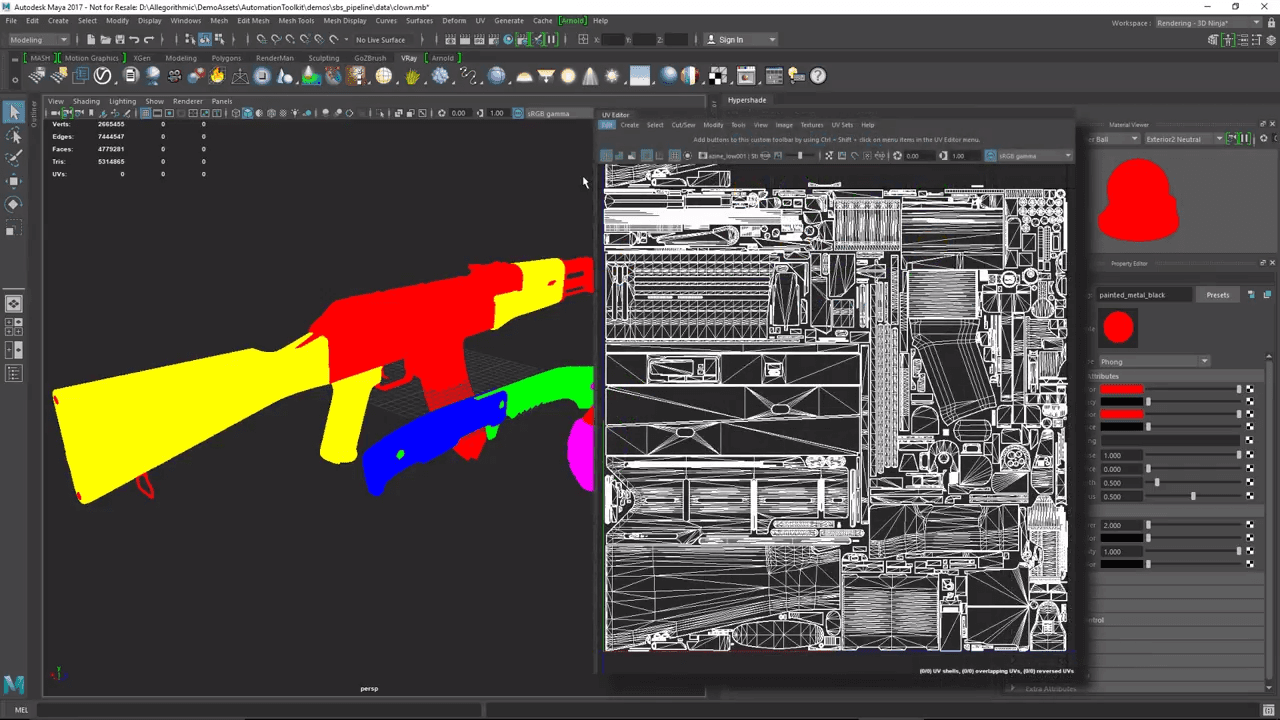

Substance Automation Toolkit (SAT)

An official Python-based toolkit from Adobe that allows you to manipulate Designer files without opening the UI.

Why it matters: It decouples "production" from "creation." You can write a script to automatically bake, export, and rename hundreds of material variations overnight. It turns Designer from an art tool into a render farm.

Best for: Large studios needing to batch-export textures for game engines or architectural libraries.

Node Snippets (Python Plugin)

A plugin that lets you save clusters of nodes as "snippets" to a custom shelf, similar to code snippets in programming.

Why it matters: You likely use the same 5-node combination to create edge wear or dust in every graph. Instead of rebuilding it or copying from an old file, this plugin lets you drop that logic in with one click.

Best for: Standardizing team workflows and speeding up repetitive masking tasks.

4/ Color and Management

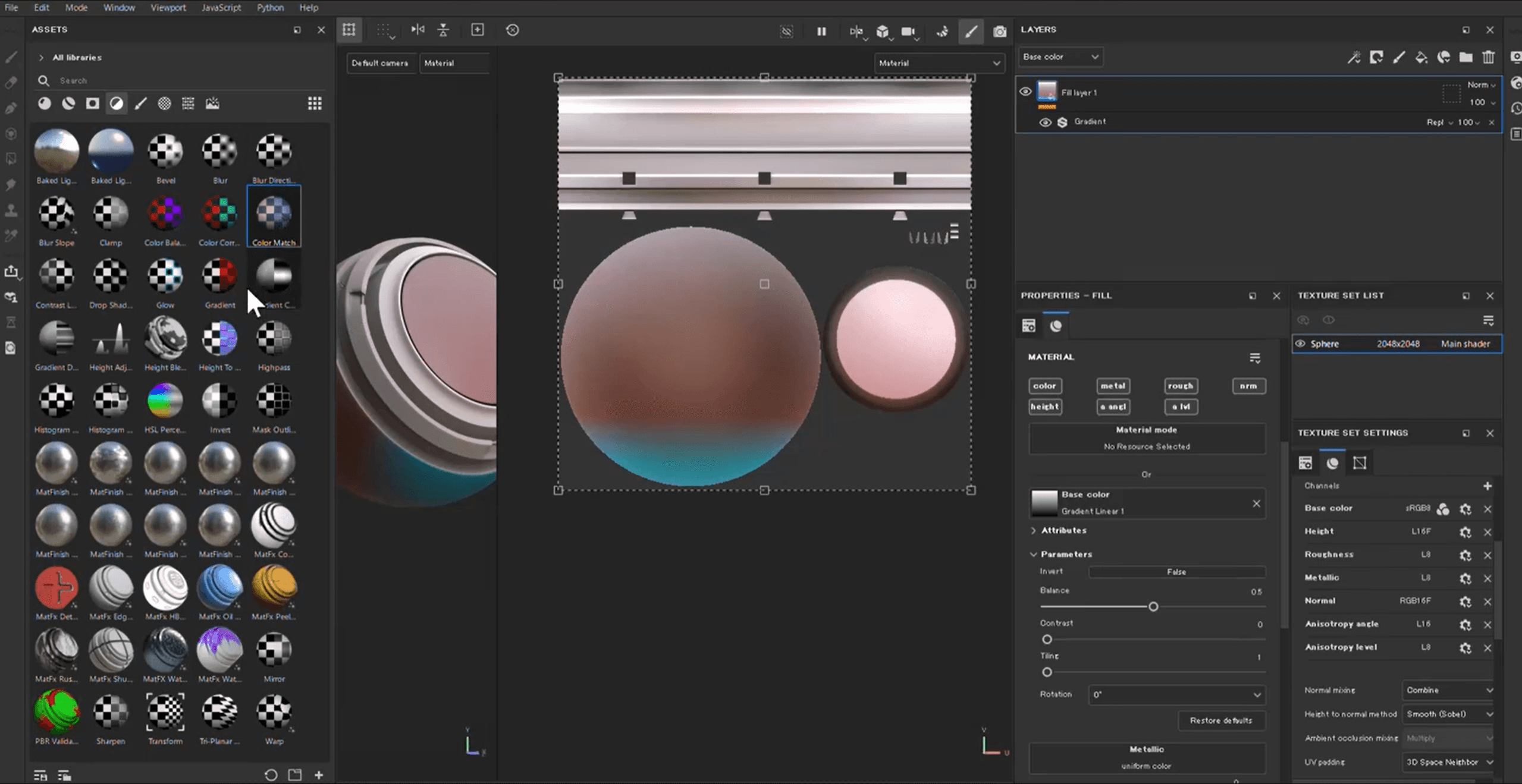

Color Match (Native/Enhanced)

While native, it is often overlooked. It allows you to pick a reference image and force your procedural texture to match its color histogram.

Why it matters: Clients often provide a blurry photo and say, "I want this exact wood tone." Manually tweaking RGB gradients is slow and inaccurate. This node gets you 90% of the way there instantly.

Best for: Client-requested color corrections and matching real-world samples.

Frame & Comment Formatting Scripts

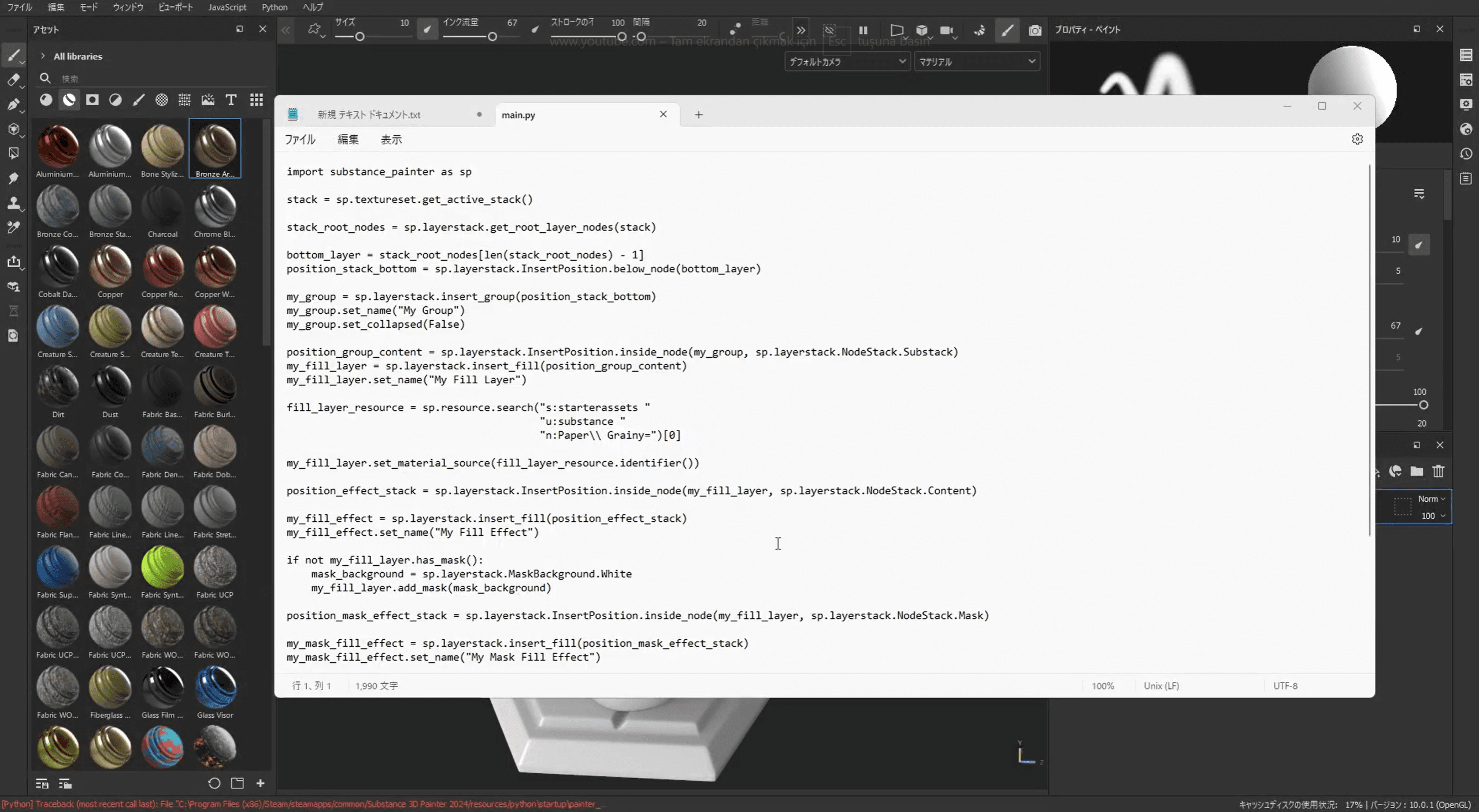

Various Python scripts (available on Substance Share) that automatically color-code and align frames based on node type.

Why it matters: A messy graph is a technical debt. If you hand off a file to a colleague, they need to understand the flow immediately. Auto-formatting scripts ensure that "Base Color" logic is always blue and "Height" logic is always green, without manual effort.

Best for: Team collaboration and keeping complex "spaghetti" graphs readable.

yellowhighlight.avif

Choosing what fits your work

You do not need all of these.

• If you do photogrammetry, get the STW Utility Pack.
• If you do procedural architecture, get Dete’s Tools.
• If you manage a team pipeline, look into SAT.

Start with the one that solves the problem you complained about yesterday.
